Key Specifications:
- CPU Socket: LGA 1151 (for 6th & 7th Gen Intel Core/Pentium/Celeron)
- Chipset: Intel Z270
- Form Factor: ATX
- Memory: 4x DDR4 DIMM slots, Dual Channel, up to 64GB, speeds up to 3866MHz (O.C.)
- Storage: 2x M.2 Socket 3 (PCIe or Optane mode), 6x SATA 6Gb/s, RAID 0/1/5/10 support
- Expansion Slots: 2x PCIe 3.0 x16, 4x PCIe 3.0 x1 (supports AMD CrossFireX)
- Networking: Realtek Gigabit LAN
- Audio: Realtek ALC887 8-Channel HD Audio with audio shielding

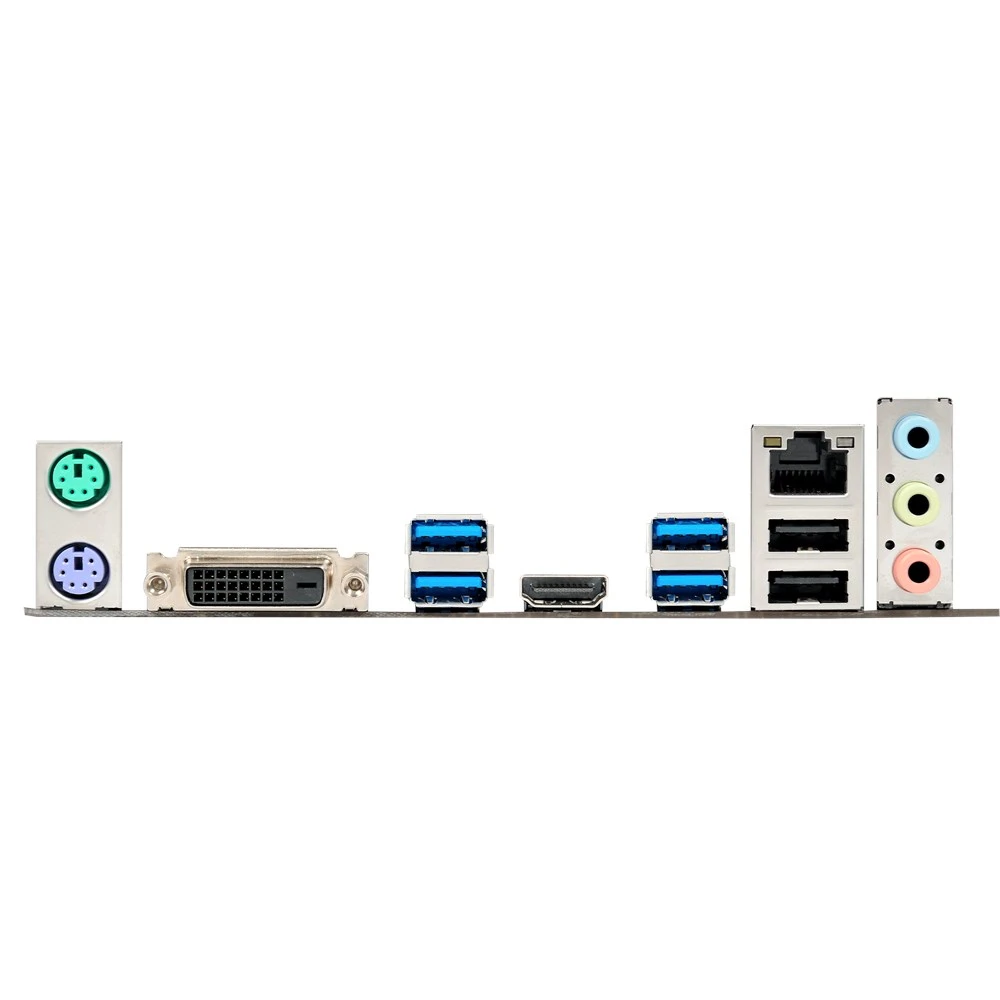

- Rear I/O: HDMI, DVI-D, 4x USB 3.0, 2x USB 2.0, PS/2, LAN, Audio Jacks
- Internal Connectors: USB 3.0 headers, USB 2.0 headers, TPM header, etc.
- Features: 5X Protection III, Aura Sync (LED Illumination), Fan Xpert 3, UEFI BIOS
This motherboard offers robust features for mainstream builds, focusing on stable overclocking, fast storage, and multi-GPU setups without SLI.
